Распиновка ECU Mitsubishi Lancer EVO
Автор Hardwarest
06.01.2010 г.

Поделюсь распиновками найденными в интернете. Пользуйтесь.

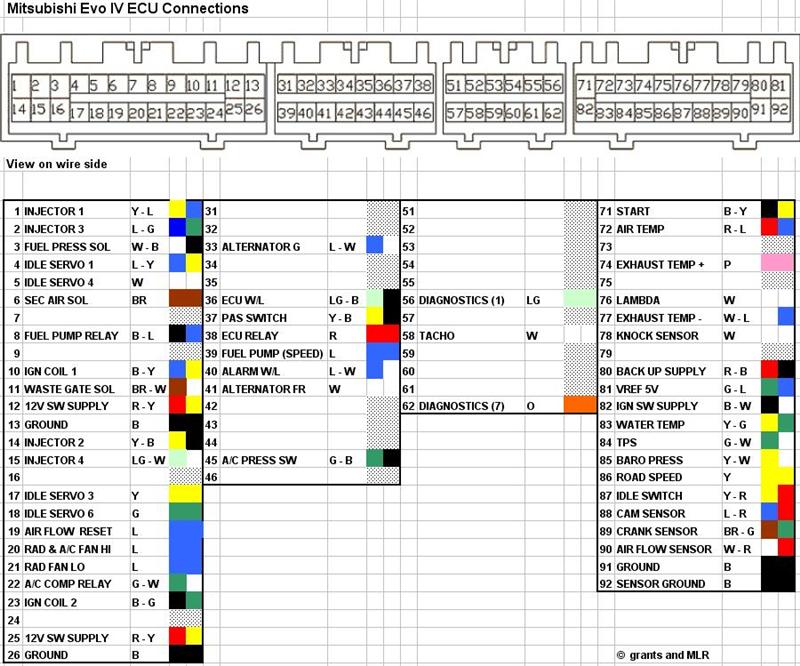

Arrow Распиновка ECU Mitsubishi Lancer EVO 4

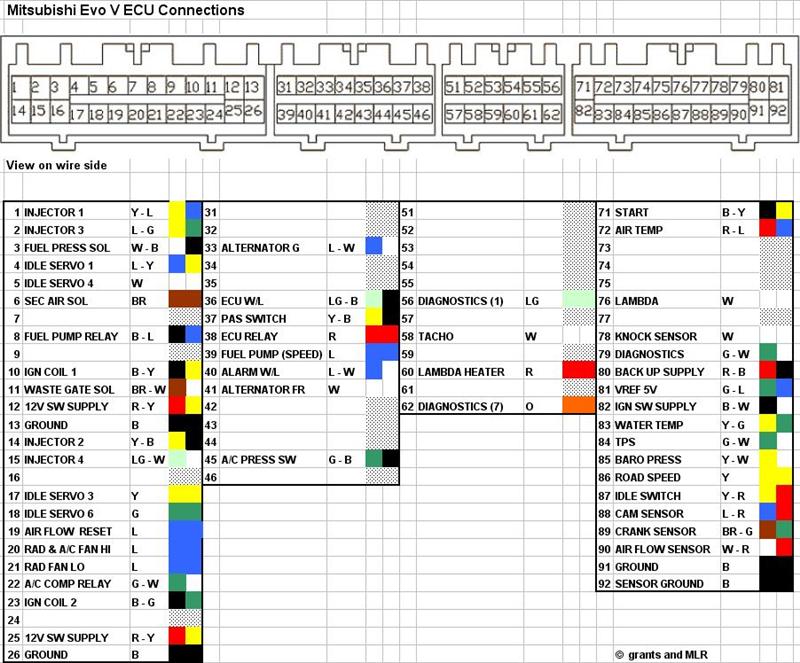

Arrow Распиновка ECU Mitsubishi Lancer EVO 5

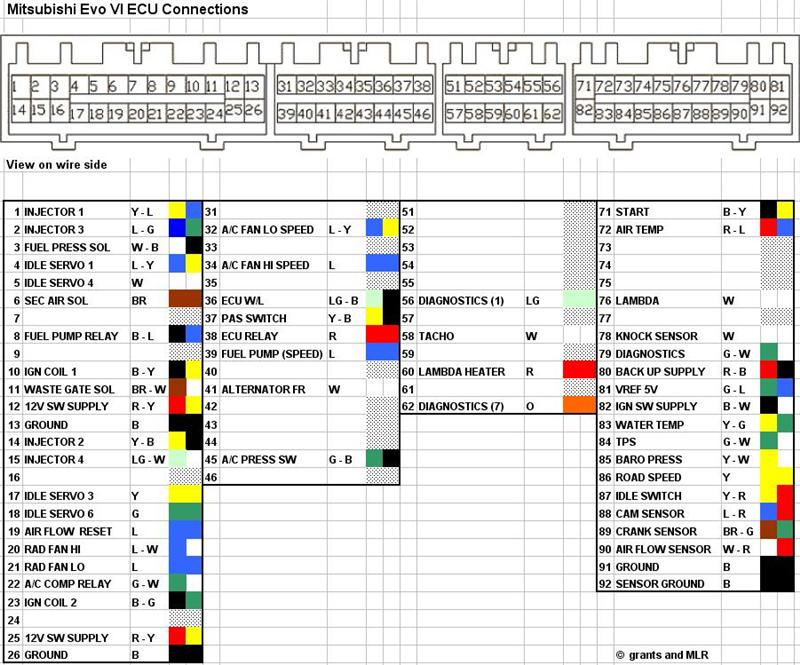

Arrow Распиновка ECU Mitsubishi Lancer EVO 6

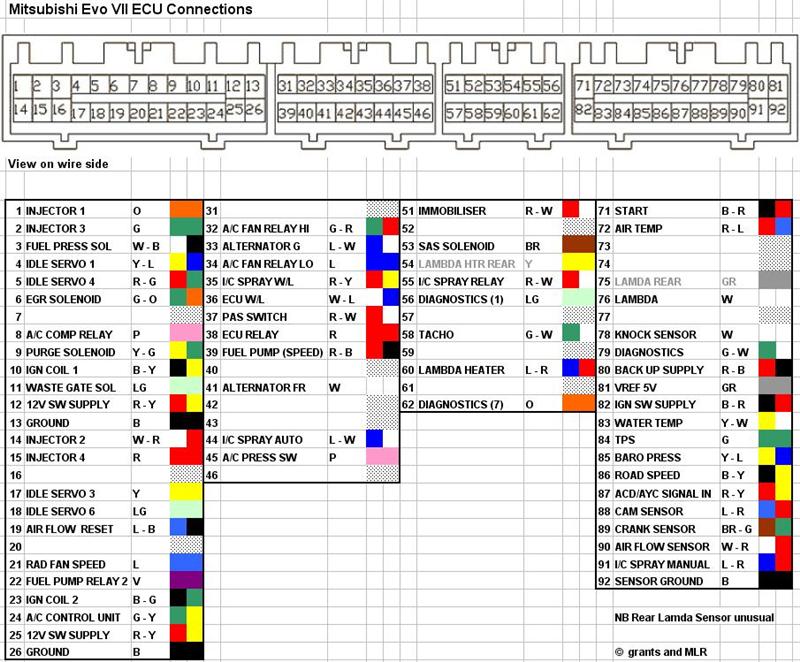

Arrow Распиновка ECU Mitsubishi Lancer EVO 7

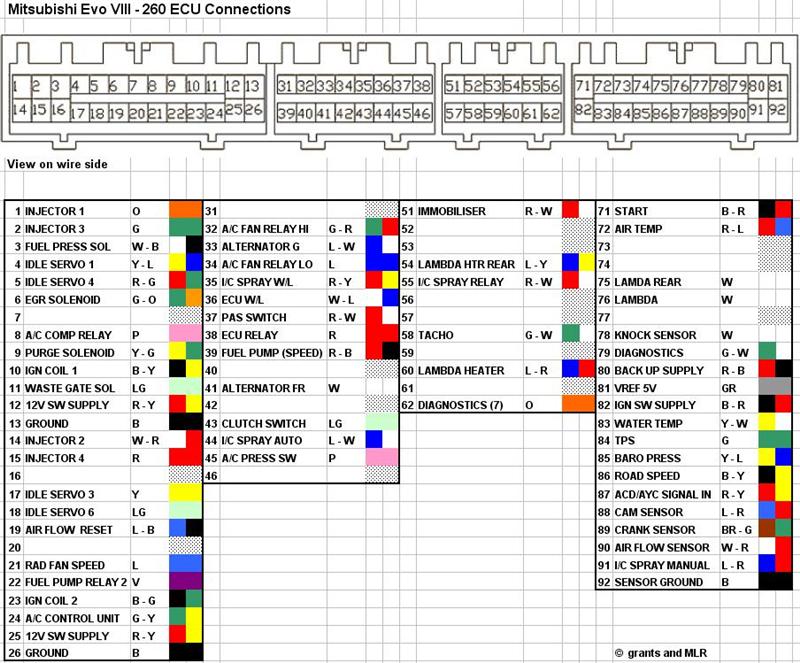

Arrow Распиновка ECU Mitsubishi Lancer EVO 8


Arrow Распиновка ECU Mitsubishi Lancer EVO X

View on wire side
1 Intake Cam engine oil control valve
2 No.1 injector
3 No.2 injector
4 No.1 ignition coil (ignition power transistor)
5 No.2 ignition coil (ignition power transistor)
6 Starter active signal
7 Exhaust camshaft position sensor
8 Crankshaft position sensor
9 Sensor supplied voltage
10 Throttle position sensor (main)
11 Throttle position sensor (sub)
12 Power supply voltage applied to throttle position sensor
13 Throttle position sensor ground
14 Throttle position sensor ground
15 Throttle actuator control motor (+)
16 Throttle actuator control motor (-)
17 Exhaust Cam engine oil control valve
18 No.3 injector
19 No.4 injector
20 No.3 ignition coil (ignition power transistor)
21 No.4 ignition coil (ignition power transistor)
22 N/c
23 Exhaust camshaft position sensor ground
24 Crankshaft position sensor ground
25 Knock sensor (+)
26 Engine coolant temperature sensor
27 Engine coolant temperature sensor ground
28 N/c
29 N/c
30 Intake camshaft position sensor ground
31 N/c
32 N/c
33 N/c
34 Heated oxygen sensor (front) heater
35 Heated oxygen sensor (rear) heater
36 Engine oil pressure switch
37 Evaporative emission purge solenoid
38 Heated oxygen sensor (front)
39 Heated oxygen sensor (front) offset voltage
40 Heated oxygen sensor (rear)
41 Heated oxygen sensor (rear) offset voltage
42 Knock sensor (−)
43 N/c
44 Power supply voltage applied to manifold absolute pressure sensor
45 Manifold absolute pressure sensor
46 Manifold absolute pressure sensor ground
47 N/c
48 N/c
49 N/c
50 N/c
51 Fuel pump relay 1
52 Turbocharger wastegate solenoid 1
53 Turbocharger wastegate solenoid 2
54 N/c
55 N/c
56 N/c
57 N/c
58 Power steering pressure switch
59 N/c
60 Generator G terminal
61 Generator FR terminal
62 Generator L terminal
63 N/c
64 N/c

71 Throttle actuator control motor ground
72 Throttle actuator control motor power supply
73 MFI relay (power supply)
74 Accelerator pedal position sensor (main)
75 Power supply voltage applied to accelerator pedal position sensor (main)
76 Accelerator pedal position sensor (main) ground
77 Accelerator pedal position sensor (sub)
78 Power supply voltage applied to accelerator pedal position sensor (sub)
79 Accelerator pedal position sensor (sub) ground
80 N/c
81 ECM ground
82 Power supply
83 Throttle actuator control motor ground
84 Throttle actuator control motor relay
85 Clutch pedal position switch <M/T>
86 N/c
87 Mass airflow sensor
88 Mass airflow sensor ground
89 Intake air temperature sensor 1
90 CAN interface (high)
91 CAN interface (low)
92 Ignition switch-IG
93 ECM ground
94 N/c
95 N/c
96 Fuel pump relay 2
97 Intake air temperature sensor 2 ground
98 Intake air temperature sensor 2
99 N/c
100 N/c
101 N/c
102 A/C compressor relay
103 Flash EP-ROM power supply
104 Backup power supply
105 Ignition switch-ST
106 Starter relay
107 N/c
108 N/c
109 N/c
110 N/c
111 N/c
112 Fuel tank differential pressure sensor
113 Fuel tank differential pressure sensor ground
114 Power supply voltage applied to fuel tank differential pressure sensor
115 Fuel tank temperature sensor
116 N/c
117 Evaporative emission ventilation solenoid
118 N/c
